Coaxial / Integra Speakers · ES-C6

Integra Ceiling

In-ceiling coaxial speaker with a pivoting tweeter, for Atmos heights, cafés and living rooms.

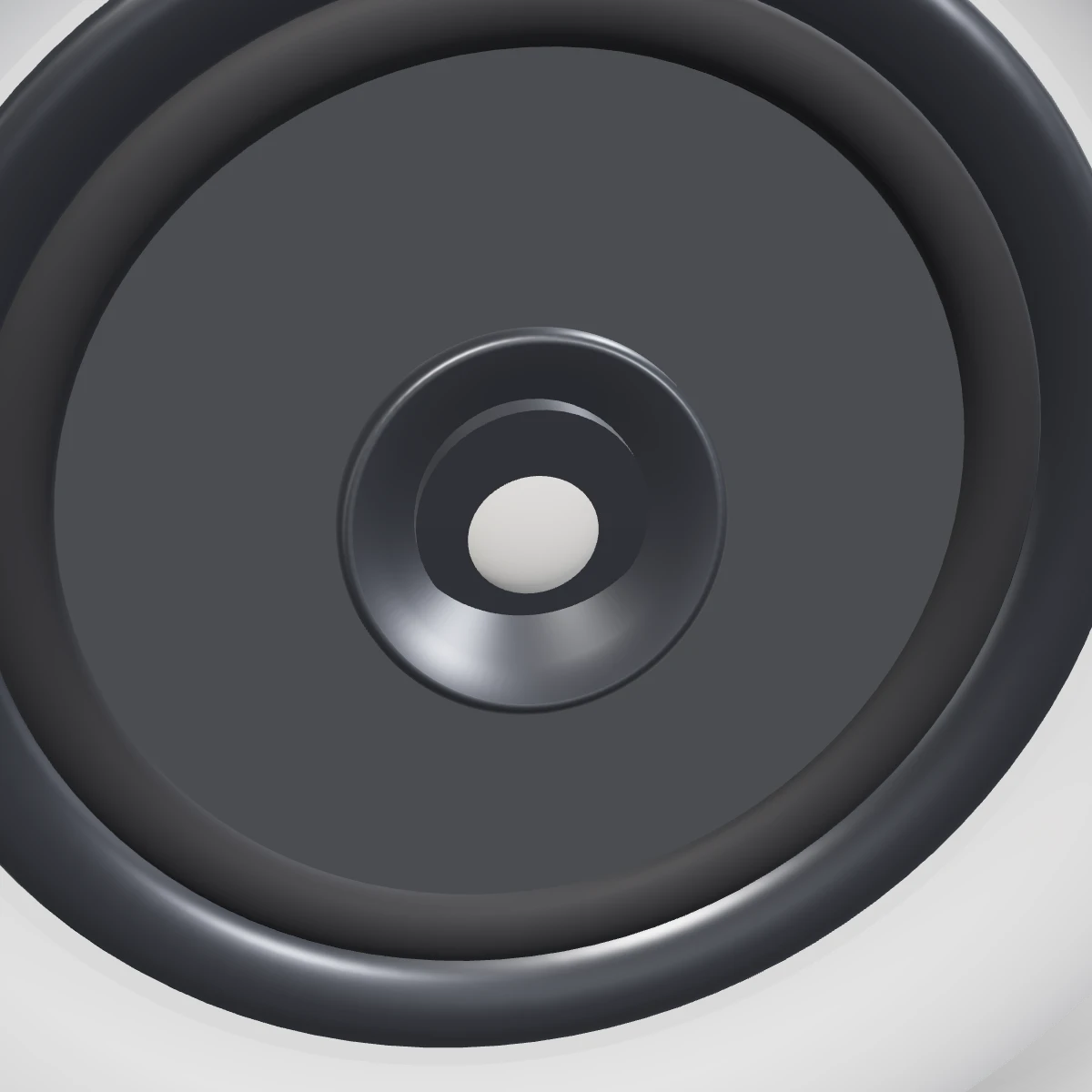

A 6.5-inch woofer with a coaxial tweeter on a pivot, so sound can be aimed at the seats. The thin-edge magnetic grille is paintable, and the sealed back can stops sound leaking into the room above.

• Pivoting coaxial tweeter, aim it at the seats
• Thin-edge magnetic grille, paintable

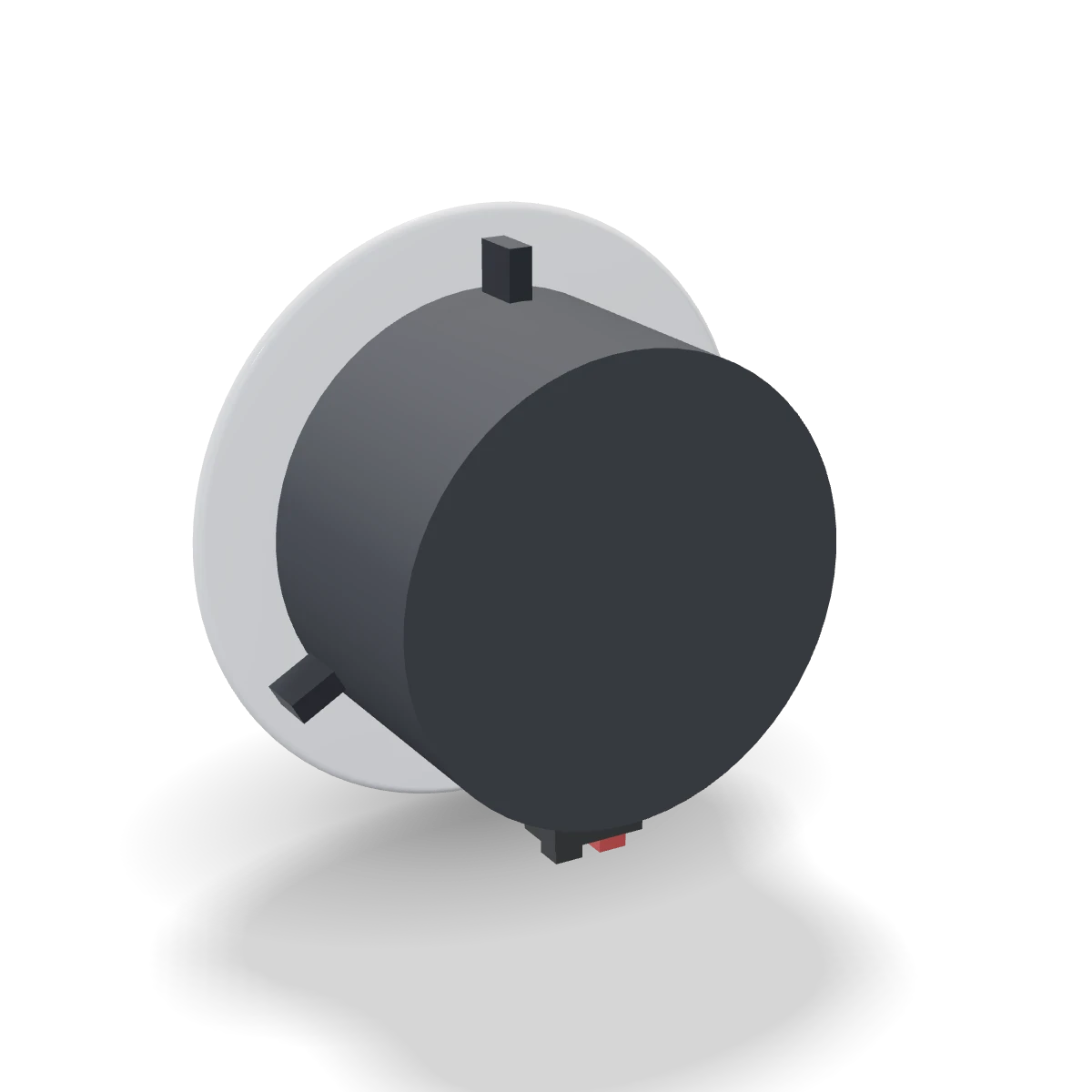

• Sealed back can and dog-ear clamps
• 70 / 100 V café version available

Specifications

Drivers	6.5" woofer with coaxial 1" pivoting tweeter
Frequency range	45 Hz – 22 kHz
Sensitivity	89 dB
Impedance	8 Ω (70 / 100 V model for cafés)
Cut-out	210 mm

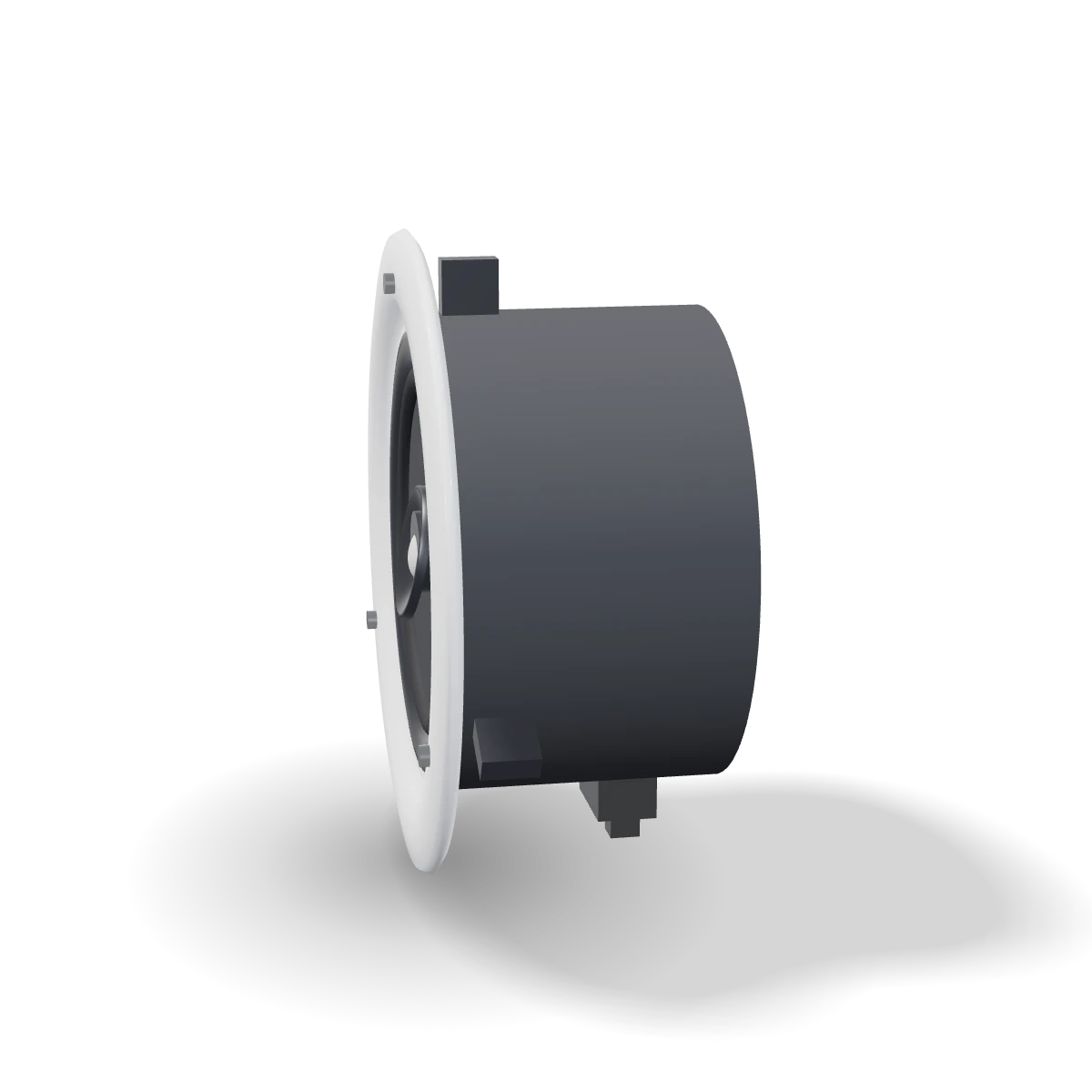

Mounting depth	118 mm with back can
Also as	ES-C8 (8") and ES-O6 outdoor IP65

Indicative price. Final price depends on finish, quantity and installation. Images are product renders.
